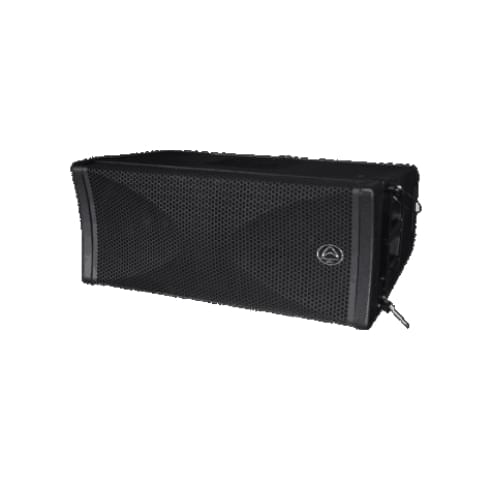

The Dual 10” Passive Wharfedale Line Array System – WLA 210X
WLA 210X Line Array System – The Portable, Powerful and Versatile WLA 210X Passive Line Array Systems
WLA-210X line array system from Wharfedale Pro kept the same design philosophies as the accorded WLA-25 and WLA-28 systems. The System boost portability, power, and versatility. The line array solutions are ideal for both touring and fixed installation applications.
Pair of 10″ Custom Wharfedale Pro drivers
Each WLA-210X element from Wharfedale Pro uses a pair of custom 10” Wharfedale Pro high- power low-frequency drivers. The high frequencies are handled by a premium 3.0” titanium diaphragm, neodymium magnet compression driver coupled to a 100° x 10° waveguide. These custom designed transducers are what give a WLA-210X system its incredible sound and power handling capacity.
Passive and Bi-amp modes which allow for Complete System Control
The WLA-210X element also features Passive and Bi-amp modes which allow for complete system control. The bi-amp feature enables the system designer to select the best amplification for each driver component within the array. Such control, when used with external signal processing such as the Wharfedale Pro Versadrive series, gives the sound engineer the ultimate in system fine-tuning. This, in turn, leads to the best audio output.
WLA-210X Built on The Newly Engineered IRIS X Compression Driver
Key Features – WLA 210X Line Array Passive Speakers
Complete Control With Passive and Bi-amp Modes
The WLA-210X Line Array element also features Passive and Bi-amp modes which allows for complete system control. WLA 210x gives you a preferred option of modes to run on which the bi-amp and passive modes got you covered. The bi-amp mode gives you the advantage of being able to select the best power amplifier specifications of each driver inside the WLA 210x. In bi-amp mode configuration, an external crossover is used to separate the frequencies and this splits the signal to the dedicated LF and HF drivers.
Array for Raining Days!
WLA 210X is Delivered With Premium Material to Withstand All Weather Conditions
Premium materials are used throughout the system. The enclosure is constructed of Baltic birch plywood and is coated in premium and durable Rhino Rock paint. To keep the weight to a minimum and prevent rust, suspension fittings are made of aluminum.
This way your speakers are protected and safe, each amplifier is only working on the given frequency range and, in turn powering the corresponding driver inside the loudspeaker. The WLA 210x fly frame is also a strong feature allowing you to stack up to a safety factor of 12. The HF-180W, LF-1600W.

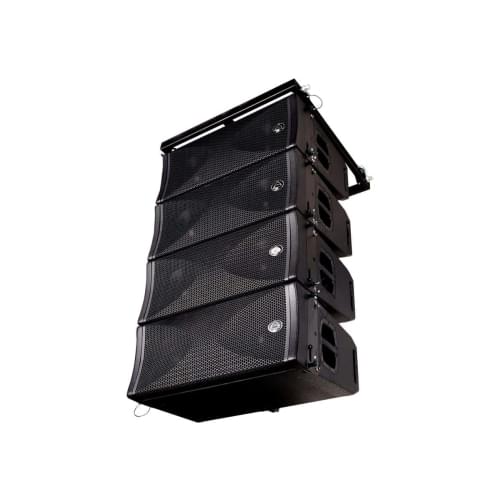

WLA 210X Common Fly Frame Systems
An elegantly simple 3-point suspension system combined with lightweight, compact size and excellent handling ergonomics means that an array can easily be deployed. With the WLA-210X Common Fly frame, systems can be configured as flying or ground-stacked in multiple combinations. WLA 210X common fly frame and support systems, arrays can be easily assembled and deployed using only WLA-210X line array elements or with WLA-210XSUB Subwoofers at the top.
The WLA 210X Line Array Solutions are Ideal for Both Touring and Fixed Installation Applications.
With it’s peak @ 3200 the WLA 210x Line Array is all that you need for your church, worship centers, fly-overs in live concerts and events and the WLA 210X Line Array exists for both outdoor and indoor consumption.
WLA 210x Line Array – reach your peak with the trapezoidal enclosed water-resistant Line Array System
SPECIFICATIONS OF TWO WAY PASSIVE WLA-210X LINE ARRAY SYSTEM
|Frequency response (+/-3dB)||65Hz – 20kHz|
|Frequency range (-10dB)||60Hz – 20kHz|
|Bi-amp sensitivity||HF : 112dB / LF : 100dB|
|Bi-amp Max SPL @ 1m||HF : 138dB / LF : 135dB|
|System rated impedance||16Ω|
|Size||2 x 260mm / 10″|
|Voice coil size||65mm / 2.5″|
|LF Magnet material||Ferrite|
|Rated impedance||8Ω x 2|
|LF Power re:AES2-2012||2 x 400w|
|HF driver type||Compression driver|
|Coil size||75mm / 3.0″|
|HF Magnet type||NdFeB|
|HF Power re:AES2-2012||80w|
|Nominal coverage||100° x 10°|
|System continuous power||HF : 90w / LF : 800w|
|System Programme power||HF : 180w / LF : 1600w|
|System Peak power||HF : 360w / LF : 3200w|
|Bi-amp mode switch||Yes|
|Input connector||2 x speakON compatible|
|Material||15mm / 18mm Plywood|
|Colour options||1.5mm black paint|
|Height||314mm / 12.4″|
|Width front||760mm / 29.9″|
|Width rear||760mm / 29.9″|
|Depth||518.5mm / 20.4″|
|Height||404mm / 15.9″|
|Width front||855mm / 33.7″|
|Width rear||855mm / 33.7″|
|Depth||594mm / 23.4″|
|Net Weight||34.8kg / 76.6lbs|
|Gross Weight||38.5kg / 84.7lbs|
