New Technology WLA-210A Active Line Array
WLA-210A is more than just another dual 10″ active line array system. It incorporates the latest hardware and software technologies from Wharfedale Pro.
The WLA-210A Array Element features custom phase plugs and the extraordinary EVO-Fold waveguide. Combined, these lead to a huge reduction in the usual phase issues that traditional 2-way line arrays have due to them having the drive units physically some distance apart in the array.
The WLA-210A element features an internal 800 W continuous power amplifier and advanced DSP presets including FIR filters. These presets make system tuning simple depending on the physical configuration and size of the array.
The WLA-210A system has been designed and engineered in the UK and is targeted at the touring and fixed install sectors.
Features of WLA-210A Active Line Array Loudspeaker
- 800 W continuous
- Dual 10″ active array element
- Internal DSP with FIR presets
- Network connection using RS485 protocol
- 133 dB Max SPL @ 1 m
- EVO-Fold waveguide
- Custom phase plugs
- 15 mm / 18 mm Birch plywood construction
- 100° x 10° dispersion
- 700 W LF + 100 W HF Continuous
- 1400 W LF + 200 W HF Peak
- 8 x DSP presets including FIR
PHASE PLUGS
The two crafted phase plugs result in a more consistent frequency response off axis.
The design is usually unseen behind the grille…..but the impact these have on the system performance is stunning.
EVO-FOLD
The central 3.0″ HF compression driver is directly coupled to our EVO-Fold waveguide.
EVO-Fold reduces the usual phase issues that traditional 2-way line arrays have due to them having the drive units physically some distance apart in the array. The HF compression driver is loaded to a unique EVO-Fold horn. The EVO-Fold horn combines a unique folded and manifold design. The most advanced FEM technology has been used to create this.
The high-mid energy exits produce a uniphasic sound in the widest range of frequencies. And visually, the detail of the EVO-Fold waveguide is a work of art.
INTERNAL DSP WITH FIR
8 x DSP Presets – built in – including FIR.
Easy to get great results – fast.
For the subwoofers (WLA-210SUBA and WLA-218BA) the AUDIENCE or STAGE presets can be used in an Inverted Stack Gradient array configuration.

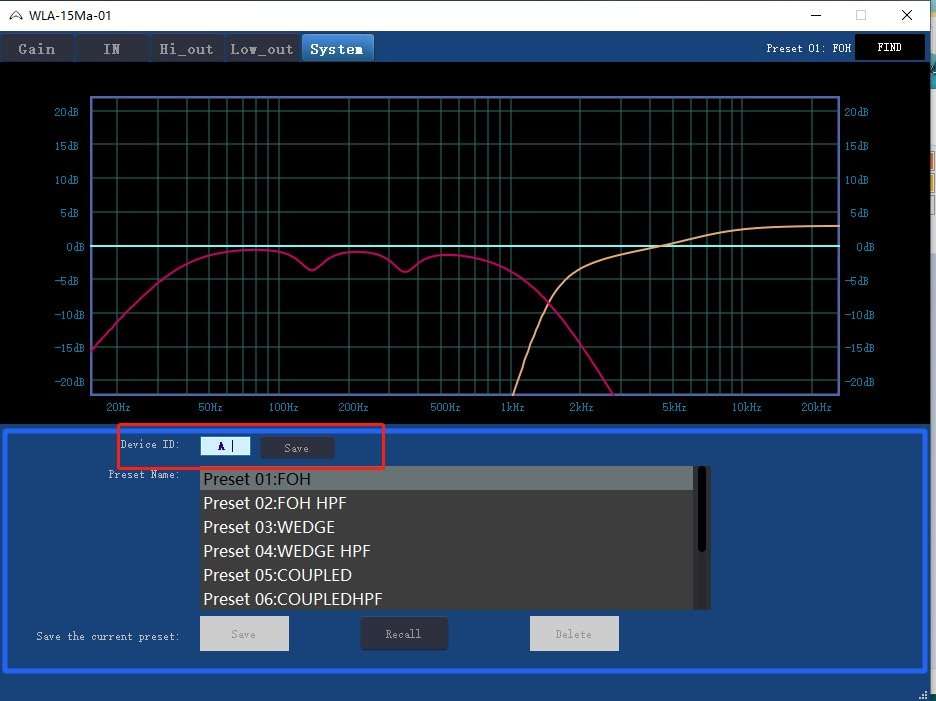

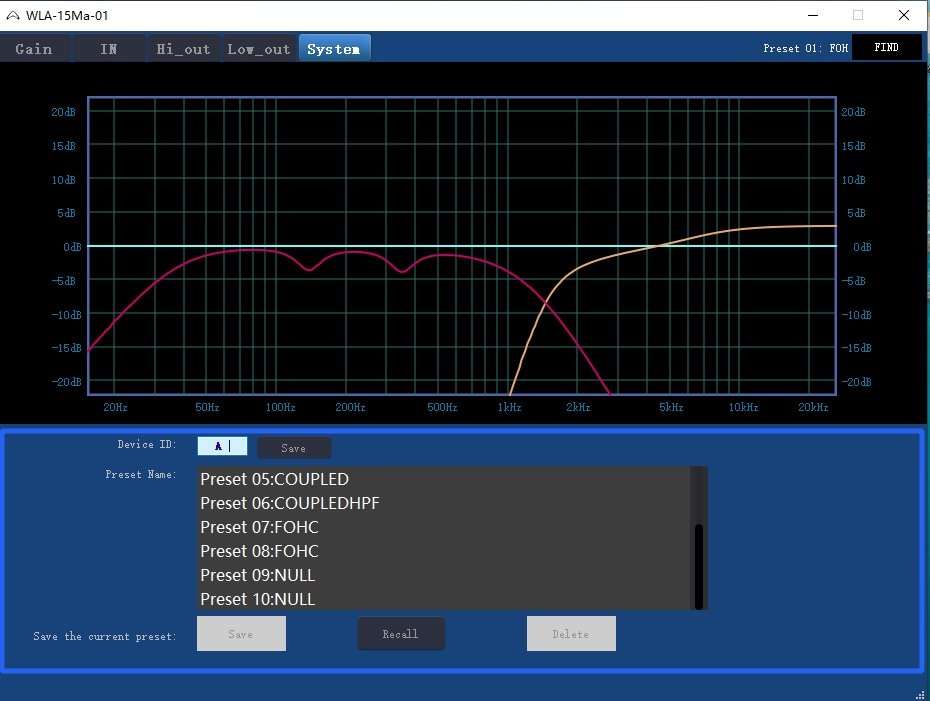

SOFTWARE CONTROL
USB-RS485-RJ45
For easy connection to the computer, the optional USB-RS485-RJ45 convertor can be used.
The network connection uses RS485 protocol and gives GUI control over the DSP parameters of each element in the array.
DUAL 10″
At the heart of the WLA-210A are 2 x 10″ custom Wharfedale Pro LF drivers.
Designed and Engineered in the UK, they deliver the power to impress.
ABOUT THE CLARITY
The HF compression driver delivers additional clarity and performance with enhanced definition.
It is custom made by Wharfedale Pro and is coupled to the EVO-Fold waveguide resulting in 100° x 10° dispersion.
Specifications Of WLA 210A Active Line Array Speaker
