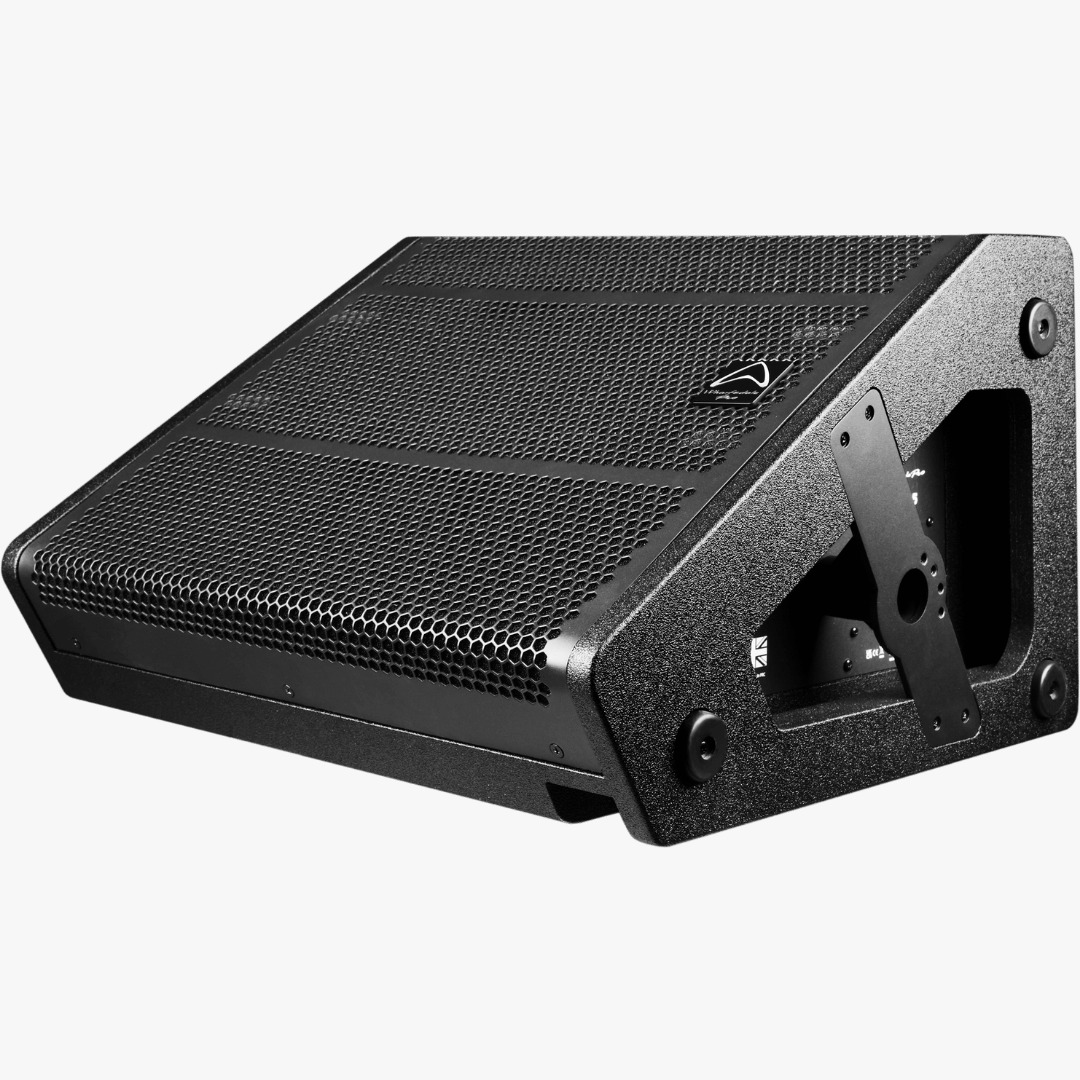

WDG-AX15 Feedback Speaker
WDG-AX12 and WDG-AX15, complementing the recently announced WDG-A12 and WDG-A15 models.
While the WDG-A versions feature a Wharfedale Pro driver and use Pro=Link software, the AX models raise performance further with a premium Beyma coaxial driver, increased power handling, and higher maximum SPL. Built around the proven DP series amplifier platform and managed via DSP Controller software, the AX models also feature constant-directivity 80° × 40° rotatable drivers, ensuring precise, consistent coverage in any orientation.
Designed for demanding real-world use, the WDG-AX models introduce IP65 certified AC in and link connectors, compatible with Neutrik products, allowing simple linking of mains extensions while providing water protection for high-demand outdoor stage applications. With color TFT displays, rotary encoder control, extensive preset libraries, and network connectivity, the AX models are equally suited to stage monitoring, side-fill duties, or compact FOH applications. Maximum flexibility for professional environments.
| Specification | Value |
|---|---|
| Active or Passive | Active |
| System Type | Floor Monitor |
| Configuration | Coaxial 2-way |
| System Continuous Power | 850 W |
| System Peak Power | 1700 W |
| Max SPL at 1 m | 132 dB |
| Freq Response (+/-3 dB) | 45 Hz – 20 kHz |
| Freq Range (-10 dB) | 30 Hz – 25 kHz |
| Bi-amp Mode Switch | No |
| Bluetooth | No |
| IP Certification | IP65. Compatible with Neutrik product series |
| Driver Brand | Beyma |
| LF Driver Size | 15″ |
| LF Voice Coil Size | 4″ |
| HF Driver Type | Compression Driver |
| HF Voice Coil Size | 2.87″ |
| HF Exit Size | 1.5″ |
| Preset Library | No |
| Input Connector | Balanced Socket XLR, Balanced Pin XLR, 2 x EtherCON Ethernet |
| Waveguide Type | Constant Directivity |
| Enclosure Material | Birch Plywood |
| Grille Material and Finish | Steel Black |
| Finish | Black Tough-Tone |
| Handles | 1 |
| Deployment | Flying, Ground, Pole, Wall Mount |
| Pole Mount | 35 mm |
| Brackets Included | No |
| Rigging | Yes. |
| M8 | 4 |
| Nominal Coverage (H x V) | 80° x 40° (Rotatable) |
| Sensitivity 2.83 V / 1 m | 99 dB |
| Transformer (T) | No |
| Amplifier design | Class D |
| DSP Controls | Rotary Encoder with Push |
| Preset list | WeDGe, WeDGe(NoFIR), COUPLED<2, COUPLED<2 (NoFIR), FOH, FOH (HPF), LEAD VOCAL, LEAD VOCAL<2, 24 x CUSTOM |
| Display Type | 1.8″ TFT Color Display |
| Driver Protection | Independent LF/HF RMS and Peak Limiters |
| Thermal Protection | Amplifier Shut Down. Auto Reset |
| DC and Short Protection | Yes. |
| Clip Limiter | Yes. |
| DC and Short Protection | Yes. |
| Active Loudspeaker Input Impedance | Balanced: 10 KΩ |
| Link Connector | Balanced Pin XLR Connector |
| Input sensitivity | +4 dBu |
| Max input level | +18 dBu |
| Main Power | AC 100-120 V~, 220-240 V~, 50/60 Hz Automatic |
| Included Accessory | Quick Start Guide, AC Cable |
| Unpacked – Height (mm) | 350 |
| Unpacked – Width Front (mm) | 560 |
| Unpacked – Width Rear (mm) | 560 |
| Unpacked – Depth (mm) | 530.8 |
| Packed – Height (mm) | 670 |
| Packed – Width Front (mm) | 465 |
| Packed – Width Rear (mm) | 465 |
| Packed – Depth (mm) | 650 |
| Weight – Net (kg) | 28.52 |
| Weight—Gross (kg) | 33.38 |
