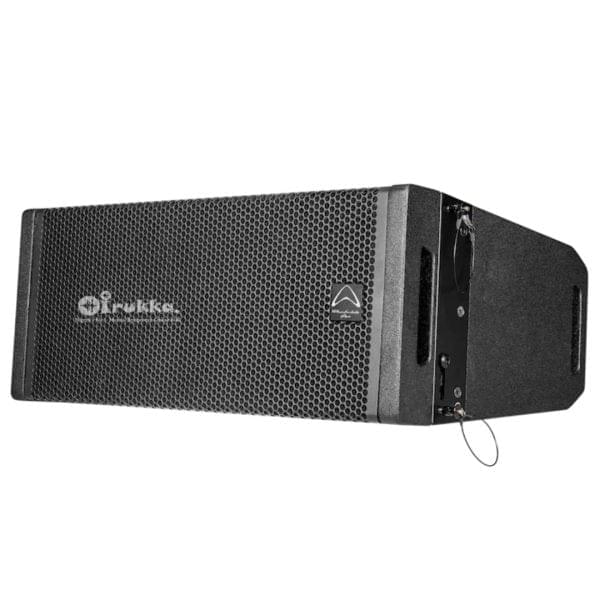

WLA-210A Active Line Array Loudspeaker

₦2,800,000

New Technology WLA-210A Active Line Array by Wharfedale Pro

WLA-210A Active Line Array Speaker

Dual 10″ active
133 dB Max SPL @ 1 meter
15 mm / 18 mm Birch plywood construction
100° x 10° dispersion
700 W LF + 100 W HF Continuous
1400 W LF + 200 W HF Peak
8 x DSP presets including FIR

Shop WLA 210A Active Line Array on Irukka.com

Shop Wharfedale Pro WLA 210 Active Line Array Speakers on Irukka Online

Name: WLA-210A Active Line Array Loudspeaker - Irukka Online Music
SKU: 62771-1
Price: 2800000 NGN
Availability: InStock

New Technology WLA-210A Active Line Array

WLA-210A is more than just another dual 10″ active line array system. It incorporates the latest hardware and software technologies from Wharfedale Pro.

The WLA-210A Array Element features custom phase plugs and the extraordinary EVO-Fold waveguide. Combined, these lead to a huge reduction in the usual phase issues that traditional 2-way line arrays have due to them having the drive units physically some distance apart in the array.

The WLA-210A element features an internal 800 W continuous power amplifier and advanced DSP presets including FIR filters. These presets make system tuning simple depending on the physical configuration and size of the array.

The WLA-210A system has been designed and engineered in the UK and is targeted at the touring and fixed install sectors.

Features of WLA-210A Active Line Array Loudspeaker

800 W continuous
Dual 10″ active array element
Internal DSP with FIR presets
Network connection using RS485 protocol
133 dB Max SPL @ 1 m
EVO-Fold waveguide
Custom phase plugs
15 mm / 18 mm Birch plywood construction
100° x 10° dispersion
700 W LF + 100 W HF Continuous
1400 W LF + 200 W HF Peak
8 x DSP presets including FIR

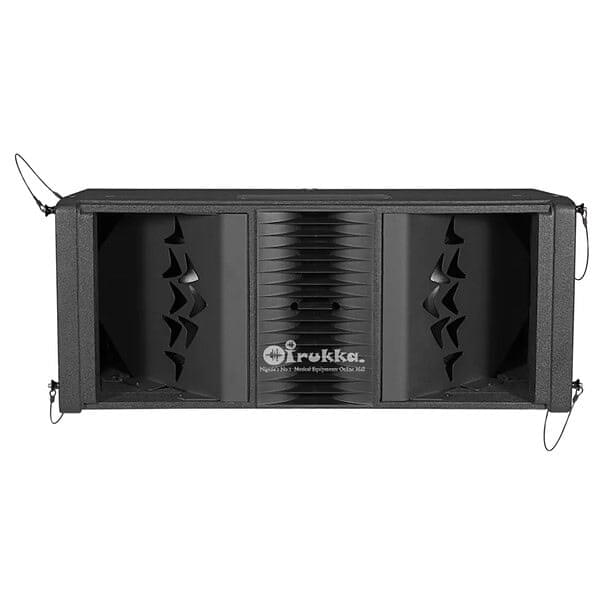

PHASE PLUGS

The two crafted phase plugs result in a more consistent frequency response off axis.

The design is usually unseen behind the grille…..but the impact these have on the system performance is stunning.

EVO-FOLD

The central 3.0″ HF compression driver is directly coupled to our EVO-Fold waveguide.

EVO-Fold reduces the usual phase issues that traditional 2-way line arrays have due to them having the drive units physically some distance apart in the array. The HF compression driver is loaded to a unique EVO-Fold horn. The EVO-Fold horn combines a unique folded and manifold design. The most advanced FEM technology has been used to create this.

The high-mid energy exits produce a uniphasic sound in the widest range of frequencies. And visually, the detail of the EVO-Fold waveguide is a work of art.

INTERNAL DSP WITH FIR

8 x DSP Presets – built in – including FIR.

Easy to get great results – fast.

For the subwoofers (WLA-210SUBA and WLA-218BA) the AUDIENCE or STAGE presets can be used in an Inverted Stack Gradient array configuration.

SOFTWARE CONTROL

USB-RS485-RJ45

For easy connection to the computer, the optional USB-RS485-RJ45 convertor can be used.

The network connection uses RS485 protocol and gives GUI control over the DSP parameters of each element in the array.

DUAL 10″

At the heart of the WLA-210A are 2 x 10″ custom Wharfedale Pro LF drivers.

Designed and Engineered in the UK, they deliver the power to impress.

ABOUT THE CLARITY

The HF compression driver delivers additional clarity and performance with enhanced definition.

It is custom made by Wharfedale Pro and is coupled to the EVO-Fold waveguide resulting in 100° x 10° dispersion.

Specifications Of WLA 210A Active Line Array Speaker

Model Name	WLA-210A	WLA-210SUBA	WLA-218BA
System Type	Active 2 x 10” 2-way Bi-Amplified	Active 2 x 15″ Subwoofer	Active 2 x 18″ Subwoofer
Frequency Response (+/-3 dB)	55 Hz – 20 KHz	39 Hz-125 HZ	30 Hz-100 Hz
Frequency Range (-10 dB)	50 Hz – 20 KHz	35 Hz-163 KHz	25 Hz-150 Hz
Loudspeaker Sensitivity @ 1 W / 1 m)	101 dB	108 dB	109 dB
Maximum SPL(peak)(@1 m)	133 dB	145 dB	148 dB
Waveguide Type	EVO-Fold®
Nominal Coverage (H x V)	100° x 10°	–	–
Signal Processing	DSP based, 8 FIR presets	DSP based, 8 presets	DSP based, 8 presets
Preset list	A) 1 SPKR 100 Hz HPF B) 2 to 4 SPKR 100 Hz HPF C) 4 to 8 SPKR 100 Hz HPF D) >8 SPKR 100 Hz HPF E) 2 to 4 SPKR F) 4 to 8 SPKR G) >8 SPKR H) CUSTOM	A) FLOWN B) FLOWN with 218 C) STACK D) STACK with 218 E) CARDIOID AUDIENCE F) CARDIOID STAGE G) CUSTOM H) CUSTOM	A) 1 SPKR 80 Hz LPF B) 1 SPKR 100 Hz LPF C) >2 SPKR 80 Hz LPF D) >2 SPKR 100 Hz LPF E) CARDIOID AUDIENCE F) CARDIOID STAGE G) CUSTOM H) CUSTOM
Amplifiers
Amplifier Design	Class D	Class D	Class D
Power Rating:	1600 W Peak (1400 W LF + 200 W HF), 800 W Continuous (700 W LF + 100 W HF)	4000 W Peak / 2000 W Continuous	4000 W Peak / 2000 Continuous
Power On Protection	Power switch on/off mute	Power switch on/off mute	Power switch on/off mute
Thermal Protection	Amplifier Shut Down. Auto Reset	Amplifier Shut Down. Auto Reset	Amplifier Shut Down. Auto Reset
Low Line Voltage Shut Down	60% Nominal Line Voltage	60% Nominal Line Voltage	60% Nominal Line Voltage
Driver Protection	Independent LF/ HF RMS, Peak Limiters and DC	RMS, Peak Limiters and DC	RMS, Peak Limiters and DC
DC and Short Protection	Yes	Yes	Yes
Limiter Indicator	Red LED	Red LED	Red LED
Signal Indicator	Green LED	Green LED	Green LED
Power/Active Indicator	White LED	White LED	White LED
Find Function Indicator	Blue LED	Blue LED	Blue LED
Input Sensitivity	+4 dBu	+4 dBu	+4 dBu
Maximum Input Level	+18 dBu	+18 dBu	+18 dBu

Input Impedance	Balanced: 10 KΩ	Balanced: 10 KΩ	Balanced: 10 KΩ
AC Power details – Power Supply	High Efficiency Switching Mode Power Supply	High Efficiency Switching Mode Power Supply	High Efficiency Switching Mode Power Supply
Connectors
Input Connector	Balanced socket XLR Connector	Balanced socket XLR Connector	Balanced socket XLR Connector
Link Connector	Balanced pin XLR Connector	Balanced pin XLR Connector	Balanced pin XLR Connector
UPDATE	USB Type B	USB Type B	USB Type B
NETWORK (RS485)	RJ45	RJ45	RJ45
AC Power Options	AC 100-120 V~ and 220-240 V~, 50/60 Hz Automatic	AC 100-120 V~ and 220-240 V~, 50/60 Hz Automatic	AC 100-120 V~ and 220-240 V~, 50/60 Hz Automatic
AC Input Connector	powerCON	powerCON	powerCON
AC Loop Through Connector	powerCON	powerCON	powerCON
Hardware – Rigging	Integral side plate adjustable rigging 0°-10°	Integral side plate	–
Enclosure Material and finish	15 mm / 18 mm Plywood	15 mm / 18 mm Plywood	18 mm Plywood
Colour Options	Black Paint	Black Paint	Black Paint
Grille Material & Finish	1.5 Steel	1.5 Steel	1.5 Steel
Unpacked dimensions – Height	314 mm / 12.4″ 190 mm / 7.5″	485 mm / 19.1″	560 mm / 22.0″
Width (Front)	760 mm / 29.92″	760 mm / 29.9″	1065 mm / 41.9″
Width (Back)	760 mm / 29.92″	760 mm / 29.9″	1065 mm / 41.9″
Depth	503 mm / 19.8″	775 mm / 30.67″	756 mm / 29.8″
Packed Dimensions – Height	404 mm / 15.9″	575 mm / 22.6″	638 mm / 25.1″
Width (Front)	855 mm / 33.7″	850 mm / 33.5″	1138 mm / 44.8″
Width (Back)	855 mm / 33.7″	850 mm / 33.5″	1138 mm / 44.8″
Depth	594 mm / 23.4″	865 mm / 34.6″	829 mm / 326.0″
Net Weight (Kg / lbs)	39.5 Kg / 86.9 lbs	68.0 Kg / 149.6 lbs	78.0 Kg / 171.6 lbs
Gross Weight (Kg / lbs)	42.5 Kg / 93.5 lbs	72.5 Kg / 159.5 lbs	92.04 Kg / 202.4 lbs
