Shop and Buy Wharfedale Power Amplifier DP Series 4065 – Slave Engine
Looking for a power amplifier that is light on weight and heavy on duty?

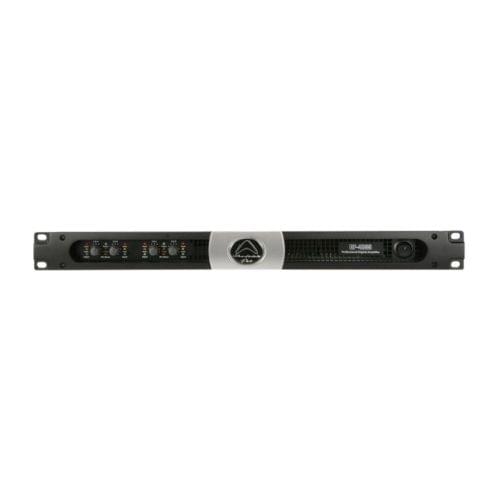

Wharfedale Power Amplifier –Â DP series 4065
Wharfedale Power Amplifier – DP series 4065 is suitable for professional live sound reinforcement or fixed installations, the 4-channel DP-4065 delivers extreme power from a lightweight box. The Wharfedale Power Amplifier DP 4065 is of the DP Series Amplifier – Huge output power, and stable down to 2 Ohms.
Its advanced switch mode power supply and super-efficient Class D topology deliver high power with low distortion. With 4 discrete channels and multiple operating modes, it’s simple to configure into the most complex of installations or touring rigs.
Get the Specifications of Wharfedale Power Amplifier DP Series 4065
KEY FEATURES DP 4065
- Super lightweight – Only 9.18kg
- 4 channel configuration
- Power Output 8Ω: 4 x 650w
- 2 x 2200w@8Ω BTL.
- Ultra-quiet variable speed fans
- Advanced protection circuitry
- Class D topology
PROTECTION
Internally, a full suite of protection circuitry includes thermal, over-current, DC, short circuit protects, and power on/off mute. This level of protection ensures long-term system reliability and peace of mind should the worst ever happen. Front panel LEDs also keep the sound engineer well informed with fault, peak, and signal LEDs. The variable speed fans keep the amplifier rack quiet when not in use – and cool while it’s running at high volume.
MODES AND SWITCHES
The DP Series feature stereo, bridge, and mono modes. Use in bridge mode with an individual high-powered subwoofer or use a single DP to power your whole sound system equally. Mono mode saves external cabling by splitting a single input to feed both channels of the amplifier. In addition, gains can easily be controlled by the rear panel gain switch. This allows for installation into almost any rig or venue. The DP-4065 features XLR inputs with a maximum input level of +22dBu allowing for integration with any typical professional audio system.
DESIGN
The 1U design allows for powerful systems to be configured in extremely confined spaces. In the tour rack or in the amp room, DP delivers reliable power from a small box. Lightweight, powerful and portable. It’s that simple!
SPECIFICATIONS OFÂ DP SERIES 4065
| Model Name | DP-4065 |
| Power Output | |
| Stereo power output 8Ω x 2 | 4 x 650w |
| 4Ω x 2 | 4 x 1100w |
| Bridged mono output 16Ω | 2 x 1300w |
| Bridged mono output 8Ω | 2 x 2200w |
| Input sensitivity & Impedance | |
| Sensitivity | selectable 38/35/32/29dB |
| Balanced XLR input | 20KΩ |
| Max input level | 22dBu (9.7Vrms) |
| Voltage gain | 38dB |
| Slew rate | >50V / μs |
| Crosstalk | <-90dB |
| S/N | >107dB |
| Distortion (1W) | <0.02% |
| Frequency response | |
| +/-1dB @ 8Ω | 20Hz – 20kHz |
| +/-3dB @ 8Ω | 20Hz – 30kHz |
| Damping factor | >5000 |
| Topology | Class D |
| Connectors | |
| Signal input | Female XLR jacks |
| Power output | speakON compatible |
| Controls | |
| Front panel | AC Switch, 4 x channel gain knobs |
| Rear panel | Parallel, Stereo & Bridge mode switch, Limiter switch |
| Protections | Thermal, Over-current, Output DC, Output short |
| Indicators | Power, Protect, Signal, Limiter |
| Cooling | Variable speed fan |
| AC Power | 90 ~ 260VAC, 50 ~ 60Hz |
| Dimensions | 44 * 485 * 370mm |
| Weight (Net) | 9.18kg |
| Weight (Gross) | 11.26kg |
Do you need networking for your sound systems? Get The DP SERIES WITH DSP
