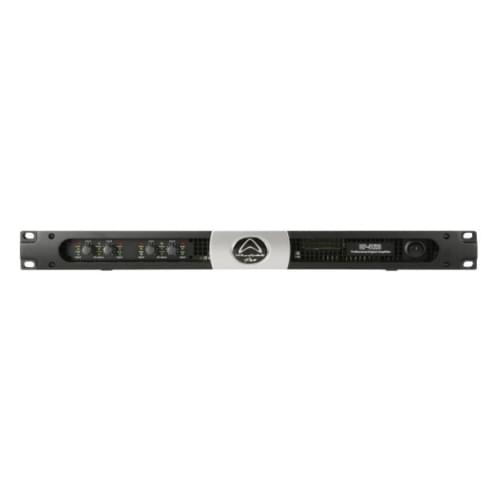

Power Amplifier – Wharfedale DP Series 4100
Is suitable for professional live sound reinforcement or fixed installations, the 4-channel DP-4100 delivers extreme power from a lightweight box. Its advanced switch mode power supply and super-efficient Class D topology deliver high power with low distortion. With 4 discrete channels and multiple operating modes its simple to configure into the most complex of installations or touring rigs. Internally, the Wharfedale DP-4100 has a full suite of protection circuitry which includes thermal, over-current, DC, short circuit protect and power on/off mute. This level of protection ensures long-term system reliability and peace of mind should the worst ever happen. So you don’t have to worry, enjoy and experience full protection when your sound system is powered with Wharfedale DP Series 4100 Power Amp. DP delivers reliable power from a small box. Lightweight, powerful and portable. DP-4100 is that simple!
Wharfedale DP Series 4100 simple to configure into the most complex of installations or touring rigs.
Wharfedale DP Series 4100 is stable to down to 2Ω
Do you need to drive multiple loudspeakers in a larger or complex system? DP Series Amplifiers are stable all the way down to 2Ω allowing for daisy-chaining of 8Ω or 16Ω loudspeakers. Experience full protection when your sound system is powered with Wharfedale DP Series 4100 Power Amp.
KEY FEATURES |Â Wharfedale DP Series 4100Â
- Super lightweight – Only 9.16kg
- 4 channel configuration
- Power Output 8Ω : 4 x 1000w
- 2 x 3400w@8Ω BTL.
- Ultra-quiet variable speed fans
- Advanced protection circuitry
- Class D topology
Wharfedale DP Series 4100 is for Professional Live Sound Reinforcement or Fixed Installations
PROTECTION ON YOUR SOUND SYSTEM RUNNING ON DP SERIES POWER AMP
Internally, a full suite of protection circuitry includes thermal, over-current, DC, short circuit protect and power on/off mute. This level of protection ensures long-term system reliability and peace of mind should the worst ever happen. Front panel LEDs also keep the sound engineer well informed with fault, peak and signal LEDs. The variable speed fans keep the amplifier rack quiet when not in use – and cool while it is running at high volume.
MULTIPLE MODES AND SWITCHES ON DP SERIES AMPLIFIER
The DP Series feature stereo, bridge, and mono modes. Use in bridge mode with an individual high-powered subwoofer or use a single DP to power your whole sound system equally. Mono mode saves external cabling by splitting a single input to feed both channels of the amplifier. In addition, gains can easily be controlled by the rear panel gain switch. This allows for installation into almost any rig or venue. The DP-4100 features XLR inputs with a maximum input level of +22dBu allowing for integration with any typical professional audio system.
The DP-4100 Fits Installation into almost any Rig or Venue
DP SERIES IS A POWERFUL SYSTEM WRAP WITHIN A BEAUTIFUL DESIGN
The 1U design allows for powerful systems to be configured in extremely confined spaces. In the tour rack or in the amp room, DP delivers reliable power from a small box. Lightweight, powerful and portable. It’s that simple!
SPECIFICATIONS OF The Powerful, Highly Sensitive Wharfedale DP Series 4100 Amplifier
| Model Name | DP-4100 |
| Power Output | |
| Stereo power output 8Ω x 2 | 4 x 1000w |
| 4Ω x 2 | 4 x 1700w |
| Bridged mono output 16Ω | 2 x 2000w |
| Bridged mono output 8Ω | 2 x 3400w |
| Input sensitivity & Impedance | |
| Sensitivity | selectable 38/35/32/29dB |
| Balanced XLR input | 20KΩ |
| Max input level | 22dBu (9.7Vrms) |
| Voltage gain | 38dB |
| Slew rate | >50V / μs |
| Crosstalk | <-90dB |
| S/N | >109dB |
| Distortion (1W) | <0.02% |
| Frequency response | |
| +/-1dB @ 8Ω | 20Hz – 20kHz |
| +/-3dB @ 8Ω | 20Hz – 30kHz |
| Damping factor | >5000 |
| Topology | Class D |
| Connectors | |
| Signal input | Female XLR jacks |
| Power output | speakON compatible |
| Controls | |
| Front panel | AC Switch, 4 x channel gain knobs |
| Rear panel | Parallel, Stereo & Bridge mode switch, Limiter switch |
| Protections | Thermal, Over-current, Output DC, Output short protect. |
| Indicators | Power, Protect, Signal, Limiter |
| Cooling | Variable speed fan |
| AC Power | 90 ~ 260VAC, 50 ~ 60Hz |
| Dimensions | 44 * 485 * 370mm |
| Weight (Net) | 9.16kg |
| Weight (Gross) | 11.1kg |
