Shop and Buy WLA-15MA Active Monitors

Name: WLA-15MA Active Monitors
Brand: Wholesale Musical Instruments
SKU: 61972
Availability: InStock
Rating: 5 (1 reviews)

WLA-A SERIES | ACTIVE MONITORS

Features of WLA-15MA Active Monitors

15″ Active floor monitor
134 dB Max SPL @ 1 meter
15 mm Birch plywood construction
90° x 60° dispersion
650 W LF + 100 W HF Continuous
1300 W LF + 200 W HF Peak
8 x DSP presets including FIR

INTERNAL DSP WITH FIR

8 x DSP Presets – built-in – including FIR.

Easy to get great results – fast.

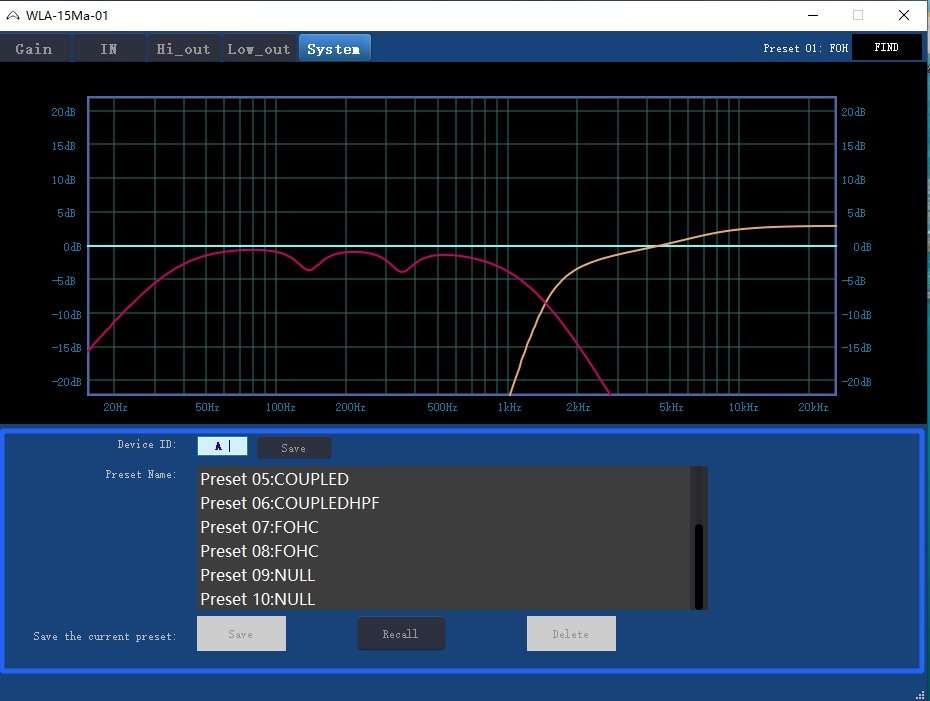

SOFTWARE CONTROL

VERSATILE CONFIGURATION

The WLA-A Series active monitors feature….

35 mm pole sockets PLUS 8 x M10 rigging points. This means that they can be used in a wide variety of applications. From install to onstage. From FOH to monitor.

THINK BIG

Imagine your dream active system! You can configure a WLA-A series rig to suit your needs! Click to zoom in.

The WLA-A Active series can create a system of any size. Looking for arrays and subwoofers….? Click the link….

WLA-12MA / WLA-15MA

SPECIFICATIONS OF WLA-15MA Active Monitor Speakers

Model Name		WLA-15MA
System Type		Active 15” 2-way Monitor Bi-Amplified
Frequency Response (+/-3 dB)		45 Hz-20 KHz
Frequency Range (-10 dB)		40 hz-20 KHz
Loudspeaker Sensitivity @ 1 W / 1 m)		99.5 dB
Maximum SPL(peak)(@1 m)		134 dB
Nominal Coverage (H x V)		90° x 60°
Signal Processing		DSP based,8 FIR presets resident in Input Module
Preset list		A) WEDGE B) WEDGE HPF C) COUPLED D) COUPLED HPF E) FOH F) FOH HPF G) CUSTOM H) CUSTOM
Amplifiers
Amplifier Design		Class D
Power Rating:		1500 W Peak (1300 W LF + 200 W HF), 750 W Continuous (650 W LF + 100 W HF)
Power On Protection		Power switch on/off mute
Thermal Protection		Amplifier Shut Down. Auto Reset
Low Line Voltage Shut Down		80% Nominal Line Voltage
Driver Protection		Independent L/ H Limiters and DC
DC and Short Protection		Yes
Limiter Indicator		Red LED
Signal Indicator		Green LED
Power/Active Indicator		White LED
Find Function Indicator		Blue LED
Input Sensitivity		+4 dBu
Maximum Input Level		+18 dBu
Input Impedance		Balanced: 10 KΩ
AC Power details – Power Supply		High Efficiency Switching Mode Power Supply
Connectors
Input Connector		XLR 1/ 4〞Combo jack
Link Connector		Balanced pin XLR Connector
UPDATE		USB Type B
NETWORK (RS485)		RJ45
AC Power Options		AC 100-120 V~/ 220-240 V~,50/60 HZ
AC Input Connector		powerCON
AC Loop Through Connector		powerCON
Hardware – Rigging		M10 x 8
Enclosure Material and finish		15 mm Plywood
Colour Options		black paint
Grille Material & Finish		1.5 Steel
Unpacked dimensions – Height		723 mm / 28.5″
Width (Front)		432 mm / 17″
Width (Back)
Depth		433.8 mm / 17.1″
Packed Dimensions – Height		808 mm / 31.8″
Width (Front)		504 mm / 19.84″
Width (Back)		504 mm / 19.84″
Depth		504 mm / 19.84″
Net Weight (Kg / lbs)		29.6 Kg / 65.1 lbs
Gross Weight (Kg / lbs)		32.3 Kg / 30.1 lbs

WLA-A SERIES | ACTIVE MONITORS | WLA-12MA Active Monitors | WLA-15MA Active Monitors

Hot

Click to enlarge

Back to products

WLA-15MA Active Monitors

Features

750 Watts continuous
15″ Active monitor
35 mm pole socket
Internal DSP with FIR presets
Network connection using RS485 protocol
134 dB Max SPL @ 1 m

Compare

Add to wishlist

SKU: 61972 Categories: Active Speakers, Active Speakers, Best Sellers, Hand Picked Products, Installation Speakers, Recent Products, Shop Management, Sound Equipment, Sound Equipment, Speakers, Speakers, Wharfedale Line Arrays, Wharfedale Pro, Wharfedale Products, Wholesale Musical Instruments Tags: Active Studio Monitors, WLA-15MA, WLA-15MA Active Monitors, WLA-15MA SERIES

Description
Reviews (0)

Description

Model Name		WLA-15MA
System Type		Active 15” 2-way Monitor Bi-Amplified
Frequency Response (+/-3 dB)		45 Hz-20 KHz
Frequency Range (-10 dB)		40 hz-20 KHz
Loudspeaker Sensitivity @ 1 W / 1 m)		99.5 dB
Maximum SPL(peak)(@1 m)		134 dB
Nominal Coverage (H x V)		90° x 60°
Signal Processing		DSP based,8 FIR presets resident in Input Module
Preset list		A) WEDGE B) WEDGE HPF C) COUPLED D) COUPLED HPF E) FOH F) FOH HPF G) CUSTOM H) CUSTOM
Amplifiers
Amplifier Design		Class D
Power Rating:		1500 W Peak (1300 W LF + 200 W HF), 750 W Continuous (650 W LF + 100 W HF)
Power On Protection		Power switch on/off mute
Thermal Protection		Amplifier Shut Down. Auto Reset
Low Line Voltage Shut Down		80% Nominal Line Voltage
Driver Protection		Independent L/ H Limiters and DC
DC and Short Protection		Yes
Limiter Indicator		Red LED
Signal Indicator		Green LED
Power/Active Indicator		White LED
Find Function Indicator		Blue LED
Input Sensitivity		+4 dBu
Maximum Input Level		+18 dBu
Input Impedance		Balanced: 10 KΩ
AC Power details – Power Supply		High Efficiency Switching Mode Power Supply
Connectors
Input Connector		XLR 1/ 4〞Combo jack
Link Connector		Balanced pin XLR Connector
UPDATE		USB Type B
NETWORK (RS485)		RJ45
AC Power Options		AC 100-120 V~/ 220-240 V~,50/60 HZ
AC Input Connector		powerCON
AC Loop Through Connector		powerCON
Hardware – Rigging		M10 x 8
Enclosure Material and finish		15 mm Plywood
Colour Options		black paint
Grille Material & Finish		1.5 Steel
Unpacked dimensions – Height		723 mm / 28.5″
Width (Front)		432 mm / 17″
Width (Back)
Depth		433.8 mm / 17.1″
Packed Dimensions – Height		808 mm / 31.8″
Width (Front)		504 mm / 19.84″
Width (Back)		504 mm / 19.84″
Depth		504 mm / 19.84″
Net Weight (Kg / lbs)		29.6 Kg / 65.1 lbs
Gross Weight (Kg / lbs)		32.3 Kg / 30.1 lbs
